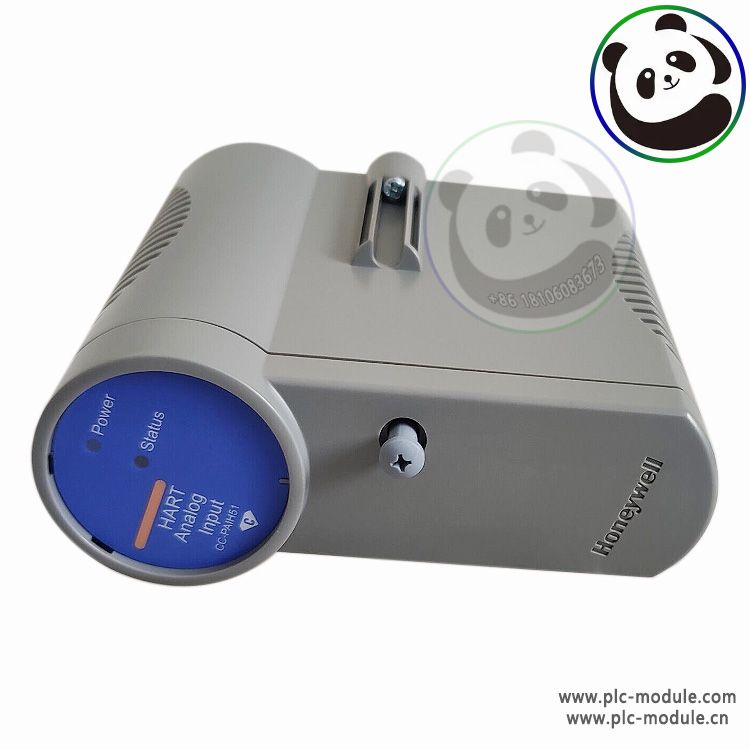

Honeywell CC-PAIH51 | 51410069-275 | Hart Analog Input Module.The Honeywell CC-PAIH51, also known as 51410069-275, is an Analog Input Module that is part of the Honeywell's Series C I/O Modules. This module is designed to provide analog input functionality in a distributed control system.
The CC-PAIH51 module supports voltage inputs for channels 1 -16 when used with CC-TAIDx1 IOTA. Each channel's 250-Ohm load resistor is connected to the input terminal through a wire jumper on the IOTA. This jumper should be cut by the user on channels to be used with voltage transmitters. For channels 13 -16 the low-side input connection is normally connected to system common by a wire jumper on the IOTA. This jumper may be cut by the user to enable differential operation subject to operating within the CMV specification.
The CC-PAIH51 module operates at 24 V and provides 32 channels. It features 2-level detachable terminals, which can be used to connect the module to the control system.
