FANUC 发那科

Fanuc A06B-0315-B033 SERVO MOTOR

质保: 365天
质量:原装模组
状况: 全新/二手
仓库:现货
发货时间:付款后3天内发货
在线咨询
  • 产品详情

    .很多产品暂未上架 更多产品请联系我们

    .如产品型号与展示图片不一致,以型号为准。具体产品图片联系我们,我们会安排到仓库拍照确认

    .我们在全球有16个共享仓库,所以有时需要几个小时才能给您准确答复,当然,我们会尽快回复您的疑虑

    Fanuc A06B-0315-B033 SERVO MOTOR.This motor is suitable for a wide range of applications requiring precise control and high reliability. It can be used in CNC machines, robotics, and other automated systems where precise motion control is essential. The motor is available in several variants, including those with different shaft configurations and protection levels, catering to various operational requirements and environments.

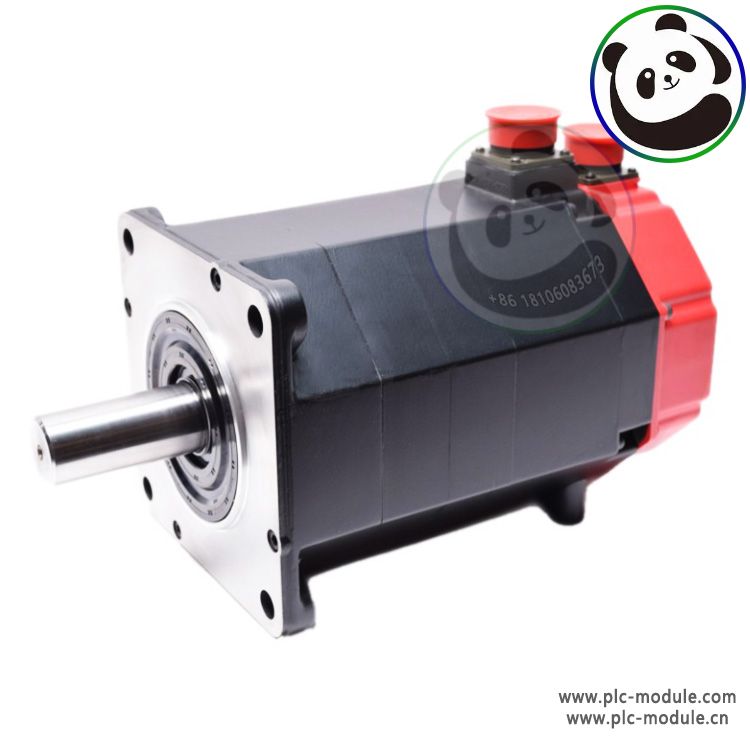

    Fanuc A06B-0315-B033 SERVO MOTOR.jpg

    • Torque: 12 Nm
    • Current: 7.6 Amps
    • Voltage: 3 phase 150V
    • Speed: 2000 RPM
    • Shaft Configuration: Tapered shaft with key
    • No brake included
    • Standard seals on the model 10S, compliant with IP65 standard
    • Fitted with a 2500 pulse coder
    • Available with various shaft configurations and protection levels, including key in shaft, V groove, double bearing (drive end), IP65 seal, V groove + keyway, IP67 protection, and key in shaft + IP67 protection.
    • Weight: 23 Kilograms
    • Back-EMF Constant: 54 V
    • Peak Current: 61 V
    • Resistance: 0.718 Ω (ohms)
    • Housing Ingress Protection: IP 65
    • Ambient Temperature: 40 ° C
    • Warranty: 1 Year
